CPU Cooler Clearance: How to Check It Before You Buy

If you've ever picked a CPU cooler based on the clearance figure printed on a case's spec sheet, there's a good chance that number was wrong. Noctua, which spends more time worrying about millimetres of headroom than almost anyone else in the industry, recently hand-measured more than a hundred PC cases against the clearance figures their manufacturers publish. Over half of them didn't match. Some were out by as little as a millimetre or two. Others were off by a full centimetre, in both directions.

That matters if you're building or upgrading a PC, because CPU cooler clearance is one of the few compatibility checks that doesn't get flagged for you at checkout the way socket type usually does. Buy a cooler that's 2mm too tall for your case and you'll find out during final assembly, not before.

What Noctua actually found

Noctua's internal compatibility team went through its case database with a tape measure rather than trusting the numbers on the box, checking real internal clearance against what each manufacturer advertises. The errors ranged from -3.5mm to +10mm across the cases tested, and in most cases the deviation ran in the buyer's favour rather than against them.

A few examples give a sense of the spread. Corsair's Frame 4000D is listed with 170mm of CPU cooler clearance, but Noctua measured 180mm in practice, a 10mm difference that's enough to fit a noticeably taller air cooler than the spec sheet suggests. Other cases in the dataset showed the same pattern on a smaller scale, gaps of a couple of millimetres up to the better part of a centimetre, occasionally leaving enough extra headroom for a cooler that wouldn't technically fit on paper.

Not every deviation runs generous. Some cases measured tighter than advertised, which is the more dangerous direction: a cooler bought to the published spec that then doesn't physically close the side panel.

Why case spec sheets get this wrong

This isn't really a story about sloppy manufacturers, or at least not entirely. Case makers tend to build a conservative buffer into published clearance figures to account for variation in motherboard standoff height, CPU socket mounting hardware, and manufacturing tolerances across a production run. A number that's technically safe for every board and CPU combination going through that case ends up being lower than what most builds will actually experience.

The problem is that a conservative number isn't a wrong number in the manufacturer's eyes, it's a deliberately cautious one. But from a buyer's perspective, sitting a step down in cooler performance because a spec sheet undersold your case by a centimetre is a real cost, especially with 2026's higher-TDP desktop chips making cooling headroom more valuable than it used to be.

Why this matters more with today's CPUs

Air cooler clearance used to be a minor consideration for anyone not running a genuinely huge tower cooler. That's changed as flagship AM5 and LGA 1851 chips have pushed sustained power draw higher. If you're weighing up something like a 9800X3D against a 9950X3D, the gap in cooling demand between the two is real, and it's exactly the kind of decision where an extra 5 to 10mm of usable cooler height, the sort of margin Noctua found hiding in several case spec sheets, can be the difference between a cooler that keeps a chip boosting comfortably and one that's constantly throttling under load.

Check current CPU pricing and specs before you commit to a chip, then work backwards to a case and cooler combination that actually has the thermal headroom for it, rather than the other way round.

How to actually check clearance before you buy

Measure it yourself if you can

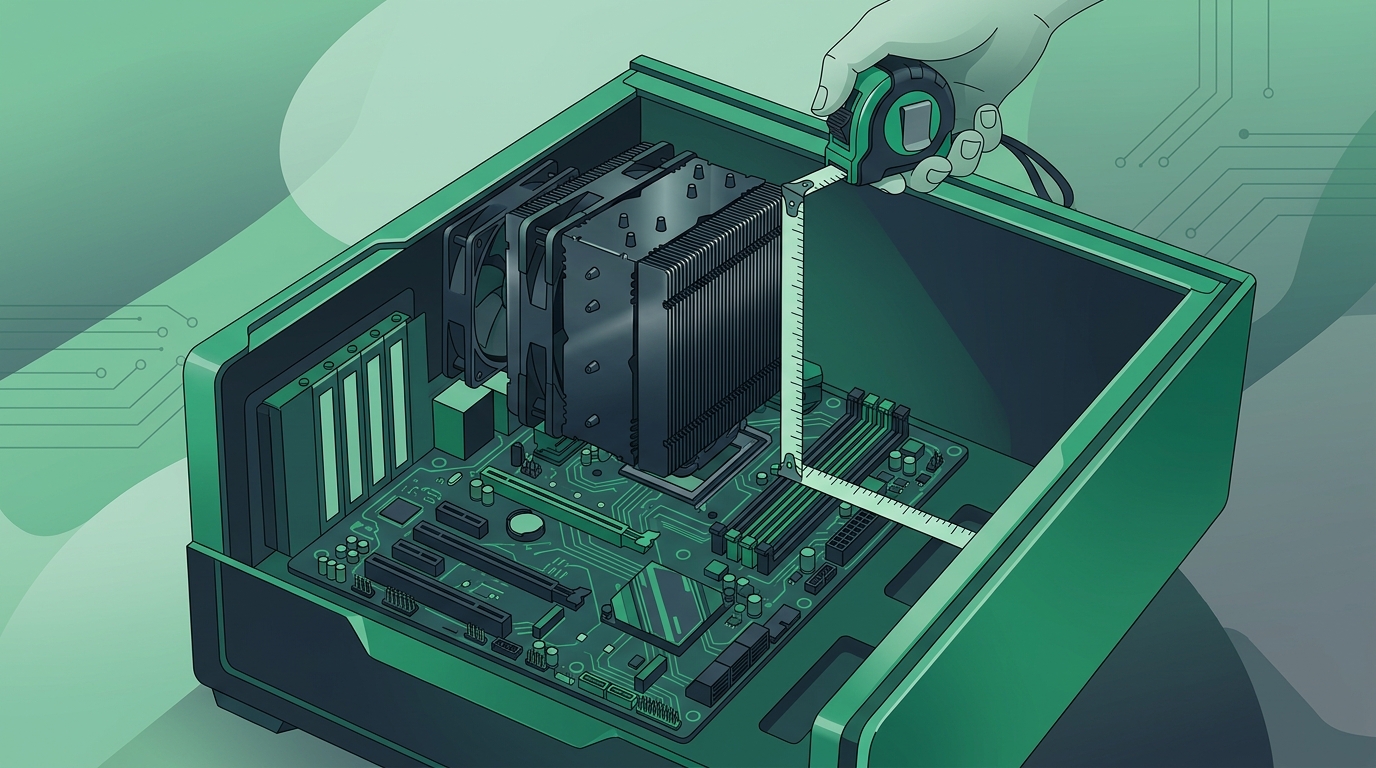

If you already own the case, or a friend has the same one, a tape measure from the motherboard tray to the inside of the side panel is more reliable than any spec sheet. Measure at the CPU socket location specifically, not just the widest point of the case, since some panels curve or step inward exactly where a tall cooler needs the room.

Cross-check against more than one source

Manufacturer spec sheets, cooler makers' own compatibility lists, and independent reviews don't always agree, and now we know why: they're not all measuring the same way. Noctua's response to this has been to build its own case compatibility database from physical measurements rather than relying on published specs, which is worth checking if you're choosing between a borderline-fit air cooler and playing it safe. Where two sources disagree, treat the more conservative figure as the one to build around.

Leave a genuine safety margin

Given that even a well-known manufacturer can be off by several millimetres, don't buy a cooler that clears your case's stated limit by only a millimetre or two. Five millimetres of headroom below the published maximum is a sensible minimum buffer, more if you can get it. It costs nothing to leave that margin and it removes an entire category of last-minute assembly problems.

Air cooler vs AIO: which actually needs the room

Tall air coolers are the obvious clearance risk, but they're not the only one. A large dual-tower air cooler is the component most likely to hit a side panel, and it's also the one where manufacturer height specs vary most in real-world measurement, per Noctua's findings. All-in-one liquid coolers sidestep the height problem but introduce a different clearance question: radiator thickness and fan stack height at the mounting point, which is just as often misreported and just as easy to get wrong if you're mounting a 45mm-thick radiator in a case designed around a 27mm one.

Either way, the fix is the same. Don't take the printed number as gospel, particularly if your chosen cooler sits within a centimetre of the case's stated maximum.

It isn't only cooler height that gets misjudged

CPU cooler clearance is the headline issue in Noctua's data, but it's part of a wider pattern of case dimensions that get rounded generously or conservatively depending on the manufacturer. RAM height clearance around a large air cooler is a similar story: tall heatsink kits can foul the edge of a dual-tower cooler even when both individually fit the case, which is worth checking directly against your RAM kit's height spec rather than assuming compatibility. GPU length is the other common culprit, particularly with current-generation cards, where a long graphics card can eat into the front fan mounts a cooler needs for adequate airflow even if there's no direct physical clash.

None of this means you need to over-engineer a build. It means treating any clearance figure, cooler height, RAM height, GPU length, radiator thickness, as an estimate to verify rather than a guarantee, especially when you're close to the limit.

Building around this in the UK in 2026

If you're planning a build from scratch, the practical order of operations is to pick your CPU and cooler pairing first, based on the sustained cooling that chip actually needs, then choose a motherboard and case that comfortably fit both, rather than squeezing a big cooler into a case chosen for looks or budget alone. Our motherboard buying guide covers how board size interacts with case selection in more detail, and it's worth reading alongside whatever cooler clearance figures you're working from.

If you've already got a case and are simply upgrading the cooler, don't rely on the number on the case's product page in isolation. Look up independent measurements where they exist, measure your own case if you can get a tape measure inside it, and buy with a margin rather than to the exact published limit. A cooler that's a few pounds cheaper but sits right at your case's rated maximum is a false saving if it turns out that maximum was never quite accurate to begin with.

Source: Tom's Hardware
