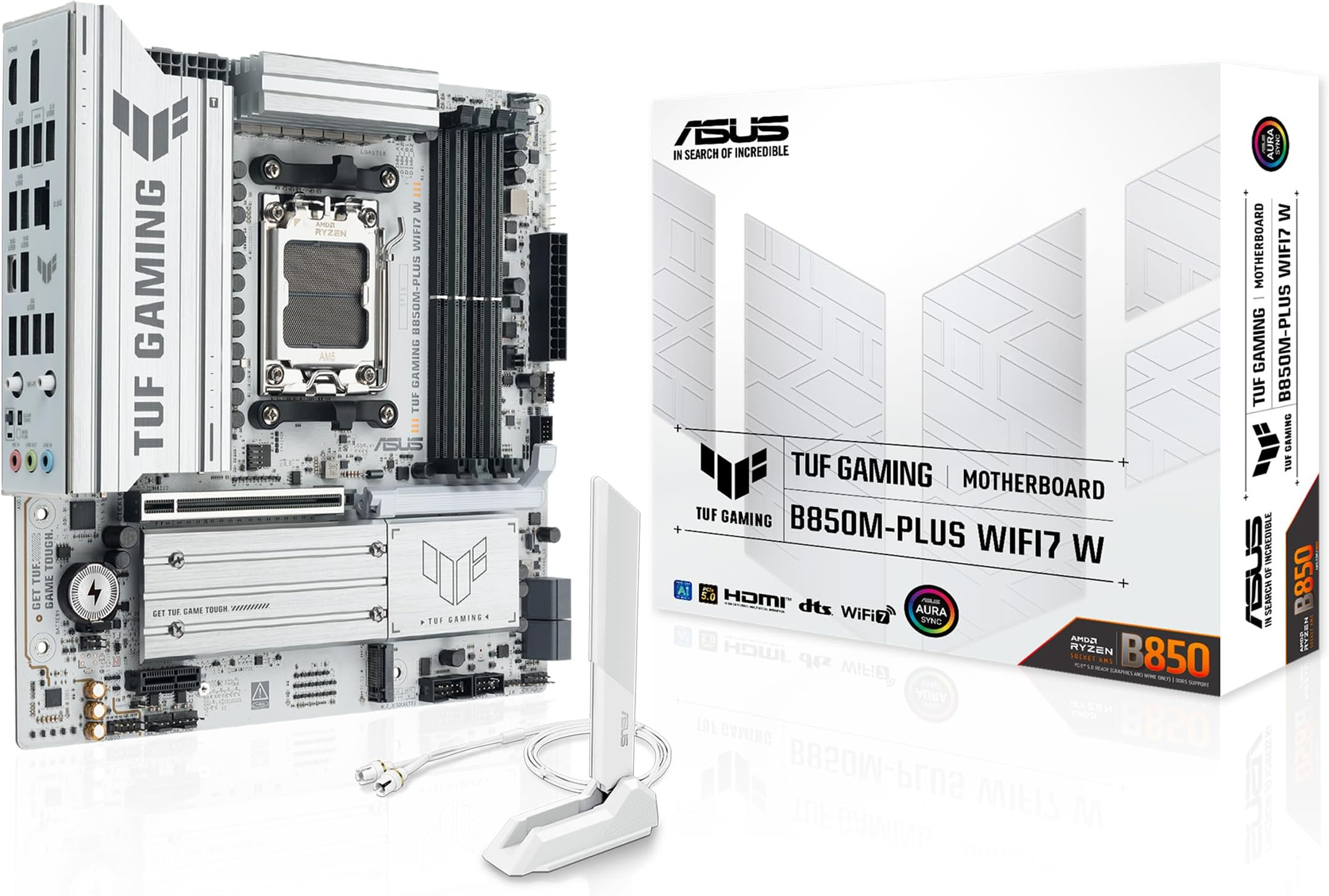

ASUS TUF Gaming B850M-PLUS WIFI7 W Motherboard Socket AMD AM5 (Micro-ATX, DDR5, PCIe 5.0, 3X M.2 Slots, Realtek 2.5Gb Ethernet, Rear 20Gbps Type-C, Front USB 10Gbps Type-C)

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning. Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors. DRAM Overclocking Performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information. M.2 PCIe 5.0 Support

This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds. Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig. Empowering Connection

This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C port and front USB 10Gbps Type-C connector. PCIe Slot Q-Release

A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device. Q-Antenna

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance. SafeSlot & SafeDIMM

SafeSlot is a reinforced metal sheath integrated with a PCIe slot to keep a card firmly installed and to ensure the highest possible data speeds. The SafeDIMM sheath is integrated to protect memory modules, empowering you to insert them with speed, accuracy and confidence. TUF Gaming B850M-PLUS WIFI7 W TUF GAMING B850-BTF WIFI W TUF GAMING B850M-PLUS WIFI7 TUF GAMING B850M-PLUS WIFI

AM5 Power Stage 14(80A)+2(80A)+1(80A)

14(80A)+2(80A)+1(80A)

14(80A)+2(80A)+1(80A) Memory 4 x DIMM, Max. 256GB, DDR5

4 x DIMM, Max. 256GB, DDR5

4 x DIMM, Max. 256GB, DDR5 Graphic Output 1 x DP, 1 x HDMI

1 x DP, 1 x HDMI

1 x DP, 1 x HDMI Expansion Slots 1 x PCIe 5.0 x16 Slots; 1 x PCIe 4.0 x1 Slot

1 x PCIe 5.0 x16 Slots; 1 x PCIe 4.0 x16 Slot; 1 x PCIe 4.0 x1 Slot

1 x PCIe 5.0 x16 Slots; 1 x PCIe 4.0 x1 Slot

1 x PCIe 5.0 x16 Slots; 1 x PCIe 4.0 x1 Slot SATA 6Gb/s 4

4 M.2 1 x M.2 2280 (PCIe 5.0 x4); 2 x M.2 2280 (PCIe 4.0 x4)

1 x M.2 2280 (PCIe 5.0 x4); 1 x M.2 22110 (PCIe 4.0 x4); 1 x M.2 2280 (PCIe 4.0 x4)

1 x M.2 2280 (PCIe 5.0 x4); 2 x M.2 2280 (PCIe 4.0 x4)

1 x M.2 2280 (PCIe 5.0 x4)​; 2 x M.2 2280 (PCIe 4.0 x4)​ USB 1 x USB 20Gbps; 4 x USB 10Gbps; 6 x USB 5Gbps; 7 x USB 2.0

1 x USB 20Gbps; 4 x USB 10Gbps; 6 x USB 5Gbps; 6 x USB 2.0

1 x USB 20Gbps; 4 x USB 10Gbps; 6 x USB 5Gbps; 7 x USB 2.0

1 x USB 20Gbps; 4 x USB 10Gbps; 6 x USB 5Gbps; 7 x USB 2.0 Wireless Wi-Fi 7

WIFI 6E Ethernet Realtek 2.5Gb
