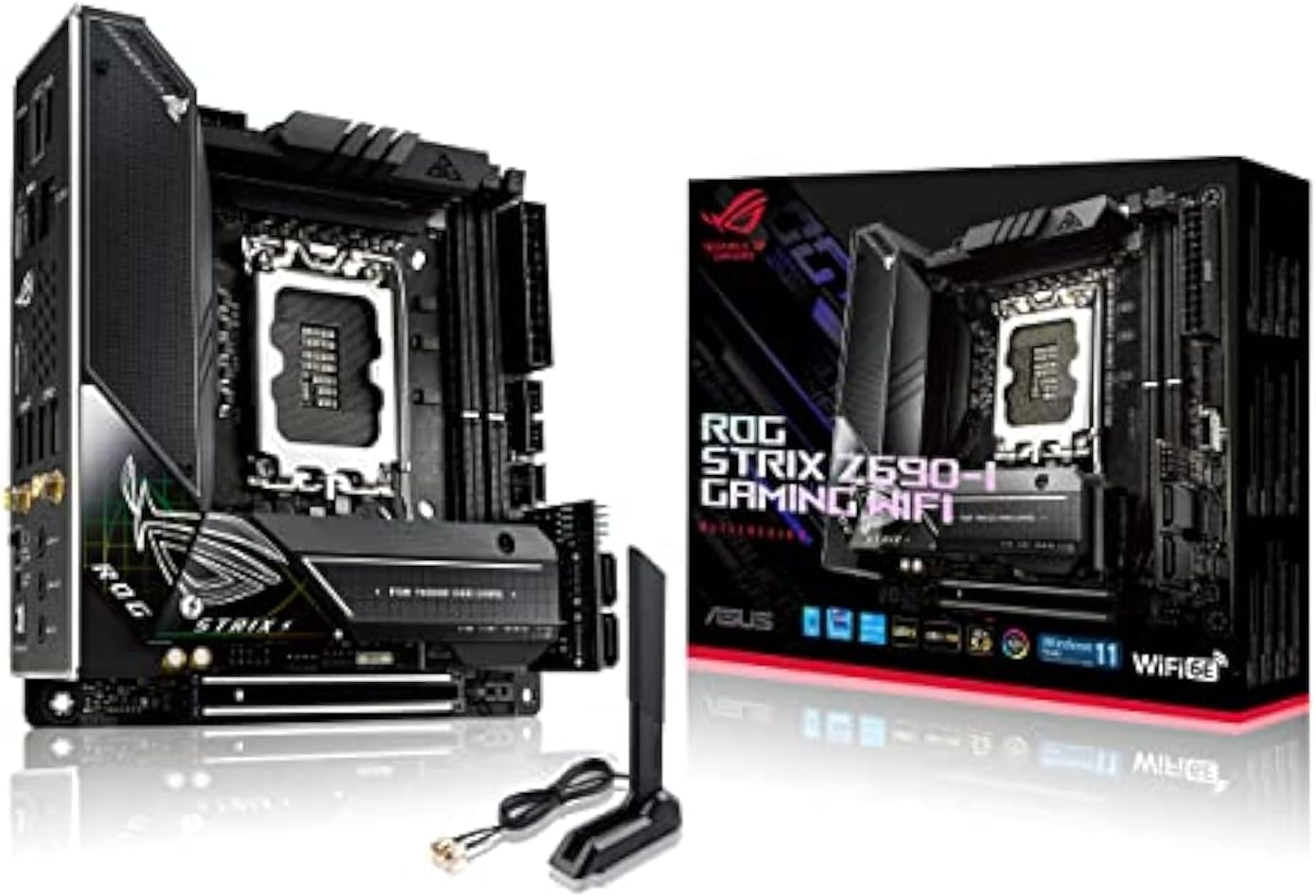

ASUS ROG STRIX Z690-I GAMING WIFI, LGA 1700, MITX, 64 GB DDR5, 2DIMM, PCIE5.0

Republic of Gamers (ROG), part of the ASUS family, is dedicated to creating innovative hardcore gaming hardware for gamers. ROG is committed to providing the absolute best performance and quality from its complete line of products. ROG is for those keen on the finest gaming hardware and software, it enables the ultimate computing experience for gamers and enthusiasts worldwide. All the while incorporating a stylish gamer-focused design merging the excitement of gaming with a unique premium style ROG STRIX Z690-I GAMING WIFI

Intel Z690 LGA 1700 ITX motherboard with PCIe 5.0, 10+1 power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, two M.2 slots with heatsinks and backplates, two Thunderbolt 4 USB Type-C, SATA and Aura Sync RGB lighting Intel LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors

Optimal Power Solution: 10+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

Optimised Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, two onboard M.2 heatsinks and backplates

High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard

Best Gaming Connectivity: Supports HDMI 2.1, two M.2 slots, 2 x Thunderbolt 4 as well as 1 x USB 3.2 Gen 2x2 Type-C

Intelligent Control:  ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance

DIY Friendly Design: Bundled ROG Front Panel SATA Card, M.2 Q-Latch, Pre-mounted I/O shield, BIOS FlashBack button, and Clr CMOS button

Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and two addressable Gen 2 headers POWER STAGES

10+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of. COOLING INNOVATION

1. Integrated I/O Cover and VRM Heatsinks

Connected by an L-shaped heat pipe, the two VRM heatsinks and aluminium I/O cover provide ample mass and surface area to deal with the thermals of Intel’s latest processors.

2. Thermal Pads

Specially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.

3. Triple-decker heatsink

The new triple-decker heatsink is cleverly designed to stack two M.2 slots, both with Q-Latch and full-size, double-sided heatsinks with thermal pads. And there’s a beefy chipset heatsink at the bottom to deliver great cooling performance. COOLER BY DESIGN

CPU:

CPU Fan Header, AIO Pump Fan Header

M.2:

M.2 Heatsink, M.2 Backplate

CHASSIS:

4-Pin PWM/DC Fan Header ROG Front Panel SATA Card

The ROG Strix Z690-I Gaming WiFi comes with an expansion card that provides additional functionality including four SATA ports, one ARGB lighting header, and connectors for a front panel header and a PC speaker. This efficient use of space enables builders to construct some of the most compact PC builds with full feature, or could also connect the power button via the 2-pin Power_BTN onboard for even more compact builds. DDR5 Overclocking Strength

Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Strix Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC). DUAL THUNDERBOLT 4 PORTS

Mini-ITX systems often find homes in entertainment centers for HTPC duty. The ROG Strix Z690-I Gaming WiFi stands ready with dual Thunderbolt 4 USB C ports on the rear I/O panel whose bidirectional 40 Gbps connectors can handle two external 4K displays at once, plus a variety of other compatible accessories. Networking

WIFI 6E (802.11 AX)

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel 2.5 Gb Ethernet

Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming. SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-I Gaming WiFi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones. CERTIFIED COMPATIBILITY

ROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices. Our Qualified Vendor List (QVL) provides a reference for identifying guaranteed-compatible components and memory. ROG STRIX Z690-I GAMING WIFI ROG STRIX Z690-E GAMING WIFI ROG STRIX Z690-F GAMING WIFI ROG STRIX Z690-G GAMING WIFI ROG STRIX Z690-A GAMING WIFI D4 Add To Basket Add To Basket Add To Basket Buying Options Buying Options Customer Reviews 4.4 out of 5 stars 3,817 4.4 out of 5 stars 3,817 4.3 out of 5 stars 373 4.4 out of 5 stars 3,817 4.5 out of 5 stars 352 Price £350.00£350.00

£349.70£349.70

£477.50£477.50 — no data — no data CPU LGA1700

LGA1700

LGA1700

LGA1700

LGA1700 CPU power 10+1 (105A)

18+1 (90A)

16+1 (70A)

14+1 (60A)

16+1 (80A) Memory DDR5 2 x DIMM, Max. 64GB

DDR5 4 x DIMM, Max. 128GB

DDR5 4 x DIMM, Max. 128GB

DDR5 4 x DIMM, Max. 128GB

DDR4 4 x DIMM, Max. 128GB Graphic output HDMI 2.1/Thunderbolt 4

HDMI 2.1

HDMI 2.1

DP 1.4/HDMI 2.1

DP1.4/HDMI2.1 Expansion slots 1 x PCIe 5.0 x16 (@x16)

1 x PCIe 5.0 x16 (@x16) 1 x PCIe 4.0 x16 slot ( x4 or x4/x4 modes) 1 x PCIe 3.0 x16 slot (max. @x4)

1 x PCIe 5.0 x16 (@x16) 1 x PCIe 3.0 x16 slot ( x4 or x4/x4 modes)

1 x PCIe 5.0 x16 (@x16) 1 x PCIe 4.0 x16 slot (max. @x4)

1 x PCIe 5.0 x16 (@x16) 1 x PCIe 3.0 x16(max. @x4) SATA 6Gb/s 6

6

6

6

6 M.2 1 x 2280 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4 & SATA)

1 x 22110 (PCIe 5.0 x4) 1 x 22110 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4 & SATA) 1 x Hyper M.2_1 (PCIe 4.0 x4) 1 x Hyper M.2_2 (PCIe 4.0 x4)

1 x 22110 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4) 1 x 22110 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4 & SATA)

1 x 2280 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4 & SATA)

2 x 22110 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4 & SATA) USB 1x USB 3.2 Gen 2x2(1C@F); 2x USB 3.2 Gen 2 (2A@B); 5x USB 3.2 Gen 1 (3@B, 2@F); 4x USB 2.0 (2@B, 2@F)

2x USB 3.2 Gen 2x2(1C@B, 1C@F); 3x USB 3.2 Gen 2 (2A1C@B); 6x USB 3.2 Gen 1 (4A@B, 2@F); 8x USB 2.0 (4@F, 4@B)

2x USB 3.2 Gen 2x2(1C@B, 1C@F); 3x USB 3.2 Gen 2 (2A1C@B); 6x USB 3.2 Gen 1 (4A@B, 2@F); 6x USB 2.0 (4@F, 4@B)

2x USB 3.2 Gen 2x2(1C@B, 1C@F); 3x USB 3.2 Gen 2 (2A1C@B); 6x USB 3.2 Gen 1 (4A@B, 2A@F); 6x USB 2.0 (2A@B, 4A@B)

2x USB 3.2 Gen 2x2(1C@B, 1C@F); 3x USB 3.2 Gen 2 (2A@B, 1C@B); 6x USB 3.2 Gen 1 (4@B, 2@F); 6x USB 2.0 (2@B, 4@F) Wireless Intel Wi-Fi 6

Intel Wi-Fi 6

Intel Wi-Fi 6

Intel Wi-Fi 6

Intel Wi-Fi 6 Ethernet 1 x Intel 2.5Gb

1 x Intel 2.5Gb

1 x Intel 2.5Gb

1 x Intel 2.5Gb

1 x Intel 2.5Gb
