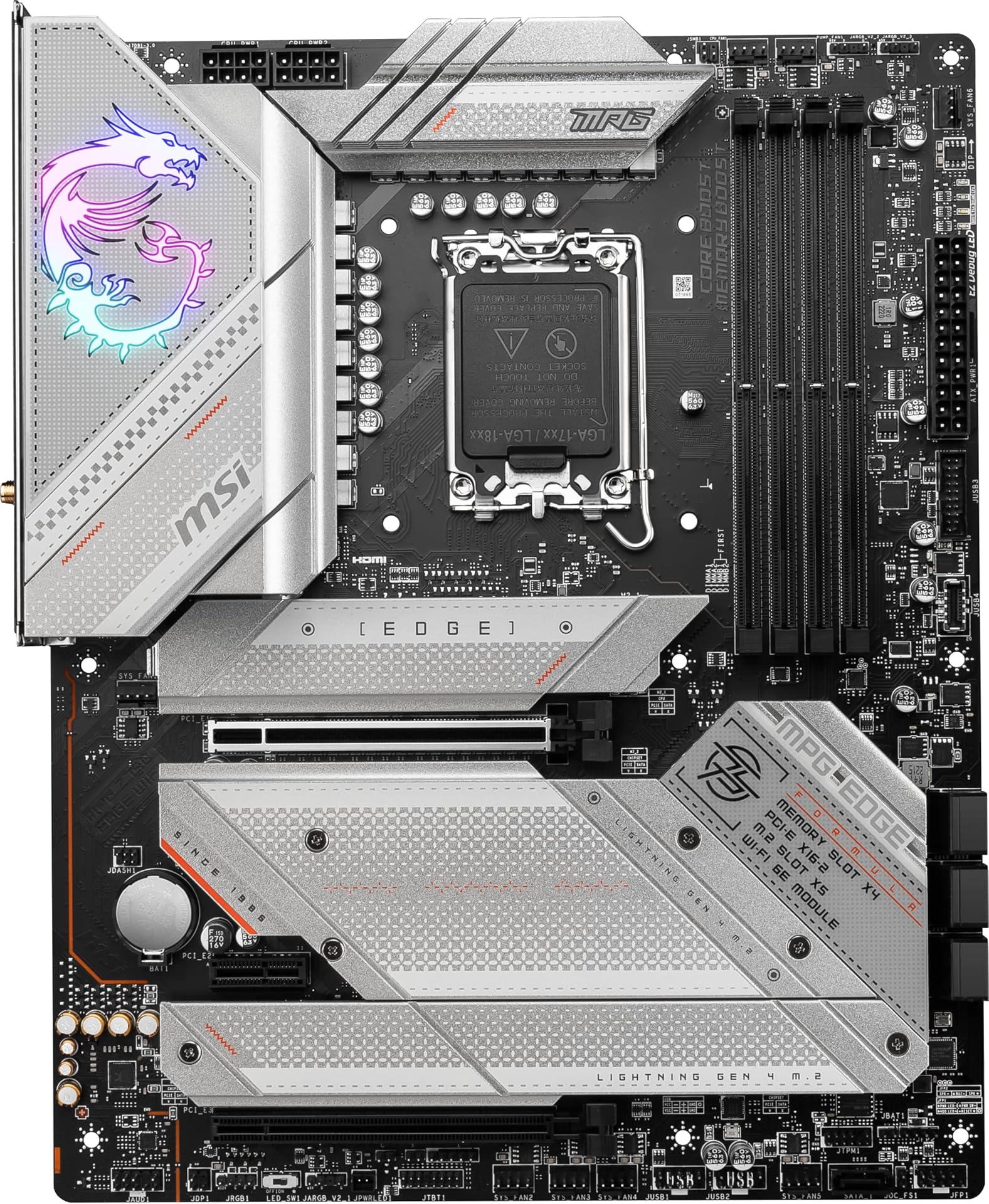

MSI MPG Z790 EDGE WIFI, 7D91-008R

About MSI

MSI is a world leader in gaming, content creation, business & productivity and AIoT solutions. Bolstered by its cutting-edge R&D capabilities and customer-driven innovation, MSI has a wide-ranging global presence spanning over 120 countries. Its comprehensive lineup of laptops, graphics cards, monitors, motherboards, desktops, peripherals, servers, IPCs, robotic appliances, and vehicle infotainment and telematics systems are globally acclaimed. MPG Z790 EDGE WIFI

Perform in Style

The MPG Z790 EDGE WIFI is a gaming oriented ATX motherboard constructed around the latest Intel Z790 chipset that delivers both performance and style. Supports Intel Core 12th & 13th Gen Processors (LGA 1700)

16 phases Duet Rail Power System CPU power with 90A SPS

1 x PCI-e 5.0 x16, 2 x PCI-e 4.0 x16

4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 7200+MHz OC)

5 x Lightning Gen4 M.2 slots with Shield Frozr

8-Channel (7.1) USB High Performance Audio with Audio Boost 5

USB 3.2 Gen 2x2 Type-C (20Gbps)

Intel 2.5G LAN, Wi-Fi 6E & Bluetooth 5.2 Supports Intel Core 12th & 13th Gen Processors

The MPG Z790 EDGE WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: ATX

Socket Type: LGA 1700

Chipset: Intel Z790 16+1+1 Duet Rail Power System with 90A Smart Power Stage

With exclusive Core Boost technology, the MPG Z790 EDGE WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC16-Phase Duet-Rail CPU Power (90A)1-Phase GT Power1-Phase AUX Power Integrated Cooling Features

VRM Cooling: VRM Cooling: Features an Extended Heatsink design, MSI direct-touch heat pipe, extra choke thermal pads and 7W/mK MOSFET thermal pads for improved thermal dissipation.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. Gen4 M.2 Connectors

The MPG Z790 EDGE WIFI motherboard features MSI's Gen4 M.2 slots:

5 x Gen4 x4 64Gb/s slots M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

Tool-Free M.2 Shield Frozr: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening. Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output. Fortified PCI-e 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with SMT solder welding to improves signal clarity. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**)

1 x PCI-e 4.0/3.0 x16 slot*

1 x PCI-e 3.0 x1 slot

*Support x16/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity. 4 x DDR5 Dual Channel (7200+ MHz OC*)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7200 MHz, supports Intel XMP. MPG Z790I EDGE WIFI MPG Z790 EDGE WIFI MPG Z790 EDGE WIFI DDR4 MPG Z790 CARBON WIFI Buying Options Add To Basket Buying Options Buying Options Customer Reviews 4.1 out of 5 stars 133 4.2 out of 5 stars 94 4.3 out of 5 stars 82 4.5 out of 5 stars 149 Price — no data £420.21£420.21 — no data — no data MSI Gaming Series MPG

MPG

MPG

MPG Form Factor Mini-ITX

ATX

ATX

ATX VRM 10 phases direct CPU power / 105A SPS

16 Duet Rail Power System / 90A SPS

16 Duet Rail Power System / 90A SPS

19 Direct Out / 105A SPS DIMM Slots 4 x DDR5 (8000+MHz/OC)

4 x DDR5 (7200+MHz/OC)

4 x DDR4 (5333+MHz/OC)

4 x DDR5 (7600+MHz/OC) PCI-e x16 Slots 1 x 5.0

1 x 5.0 / 1 x 4.0

1 x 5.0 / 1 x 4.0

1 x 5.0 / 1 x 4.0 M.2 Slots 2 x Gen4 x4 / 1 x Gen3 x4

5 x Gen4 x4

5 x Gen4 x4

1 x Gen5 x4 / 4 x Gen4 x4 M.2 Shield Frozr Single-sided

1 x Double-sided / 4 x Single-sided

Single-sided

Single-sided Audio 8-Channel (7.1) USB High Performance Audio with Audio Boost 5

8-Channel (7.1) USB High Performance Audio with Audio Boost 5

8-Channel (7.1) HD Audio with Audio Boost 5

8-Channel (7.1) HD Audio with Audio Boost 5 LAN Intel 2.5G LAN

Intel 2.5G LAN

Intel I225V 2.5G LAN

Intel I225V 2.5G LAN WiFi & Bluetooth Intel Wi-Fi 6E module, Bluetooth 5.2

Intel Wi-Fi 6E module, Bluetooth 5.2

Intel Wi-Fi 6E module, Bluetooth 5.2

Intel Wi-Fi 6E module, Bluetooth 5.2
